Marine Wall Mount Touch Screen PC 1000 Nits Brightness Projected Capacitive Touch

Name: Marine Wall Mount Touch Screen PC 1000 Nits Brightness Projected Capacitive Touch
Brand: ITD/OEM
Price: 1 USD

China Marine Wall Mount Touch Screen PC 1000 Nits Brightness Projected Capacitive Touch wholesale

Brand Name : ITD/OEM

Model Number : ITD15PPCT5HBMJ1

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : 10-15 work days

Packaging Details : Foam,gift box,master carton,wooden case,pallet

IP Rating : IP65 Front Panel

Touch Technology : Projected Capacitive Touch with 10 touch points/Resistive touch

Resolution : 1024X768

Brightness : 1000cd/m2 1500nits optional

Port : USB/VGA/HDMI/Serial

Operating Temperature : -10~60℃ (-20~70℃ Optional)

Storage Temperature : 20~70℃

Mounting Method : VESA, embedded/panel mounting with clamps, desktop stand

Aging Test : 24H

Power Input : DC 9-36V

Price : TBA

Contact Now

15 inch marine panel PC 1000nits brightness control from 0 to 100% anti-shock&vibration

The ITD industrial touch screen panel/flush mounted panel PC coming with high brightness industrial TFT panels is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0GHz with Projected Capacitive Touch (PCT or PCAP) Technology in an industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch flush mounted panel PC is mainly designed for marine application.

Specifications:

Model	ITD10PPCT5HBMJ1	ITD12PPCT5HBMJ1	ITD15PPCT5HBMJ1	ITD17PPCT5HBMJ1	ITD19PPCT5HBMJ1	ITD21PPCT5HBMJ1	ITD24PPCT5HBMJ1
Size	10.4”	12.1”	15”	17”	19"	21.5"	24"
Active Area(mm)	211.2 x158.4	246.0x184.5	304.12x228.09	337.92x270.33	376.32x301.06	476.64x268.11	531.36x298.89
Contrast Ratio	500:1	500:1	700:1	1000:1	1000:1	1000:1	1000:1
Resolution	800 x 600	800 x 600	1024 x 768	1280 x 1024	1280 x 1024	1920 x 1080	1920 x 1080
Brightness	1000nits	1000nits	1000nits	1000nits	1000nits	1000nits	1000nits
Viewing Angles	70/70/60/70	70/70/60/60	80/80/60/70	85/85/80/80	85/85/80/80	85/85/80/80 or 89/89/89/89	85/85/80/80 or 89/89/89/89
Backlight	LED	LED	LED	LED	LED	LED	LED

SPECIFICATION

System	CPU	Intel® Celeron J1900 2.0GHz Processor
	BIOS	Award BIOS 4/8Mbit SPI Flash ROM
	Chipset	Intel Valley View SSA‐Cunit
	Memory	1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
	Graphic Chipset	CPU integrated graphics HD and support 1080p
	Storage	64GB SSD or 500GB HDD Max. 512GB SSD or 1TB HDD
	LAN	1 x 10/100/1000Mbps Ethernet
Input / Output	Serial Ports	1 x COM
	USB Ports	4 X USB
	VGA Port	1 x VGA
	HDMI Port	1 x HDMI Port
	Power Port	9~36V DC Input
	Audio Card	Realtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
Environment Considerations	WIFI	Built-in, 802.11a/b/g/h (optional)
Touch Screen	Type	Projected Capacitive Touch Screen with 10 independent touch points
	Response Time	≤5ms
	Interface	USB or COM, default to USB
	Transparency	≥85%
	Lifetime	≥50,000,000 times/click
	OS Support	Windows CE/XP/7/8, Linux, Mac, Android
Operation/Power Saving	TBA
Operating Temperature	-10~60℃
Storage Temperature	-20~70℃
Operating Humidity	5%~95% (non condensing)
Anti-Vibration	5Hz-500Hz / 1Grms/3 Axis
Anti-Shock	15G, 11ms duration
Mechanical Mounting	Panel/Flush Mounting with IP65, VESA Brackets Mounting
OS Support	Windows7/8/10, Linux
Order Information	Marine Panel PC 1000nits with Resistive Touch/ITD**PPCT1HBMJ1
	Marine Panel PC 1000nits with PCAP Touch/ITD**PPCT5HBMJ1
	Marine Panel PC 1000nits with Tempered Glass/ITD**PPCG1HBMJ1
	Marine Panel PC 1000nits with AR Tempered Glass/ITD**PPCG2HBMJ1

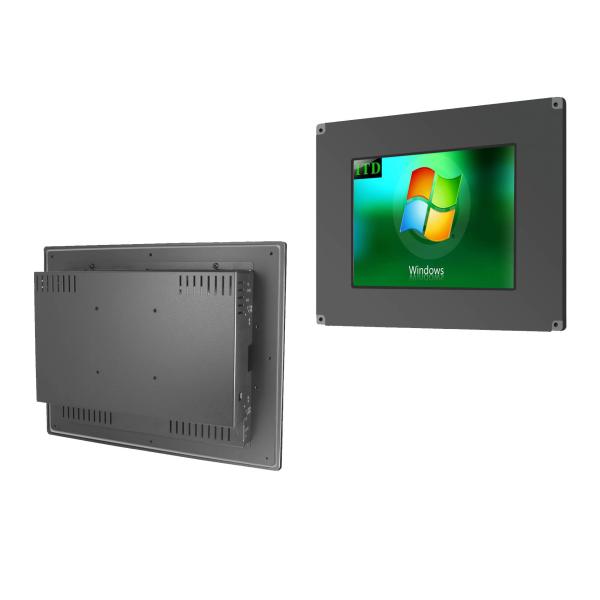

Product Display:

Marine Wall Mount Touch Screen PC 1000 Nits Brightness Projected Capacitive Touch
